The earlier gallery mixed existing controls, development changes and a future Sources proposal. Start here instead. Each task names what you do today, what changes in the review, and the behavior that must survive.
No installed app changes were made for these pages. A missing control in a mockup is an incomplete design, not permission to remove it. Existing functionality, settings and output behavior must be preserved and tested before a redesign can replace it.
Sources · Revised proposal, not implemented
The wide table becomes a stable list. Category, format/fps and quick MV inclusion stay visible. Selecting a row opens its detailed controls; it does not reassign the source.
Changed in revision 2: ten slots, category filtering, format/fps and per-row MV controls are shown. The extra Sources Cue/Take path from the first proposal is removed; Scene Builder keeps that responsibility.
All numbers and video in that proposal are simulated. Hardware setup, ISO controls, Zoom quality preferences and output routing are not fully mocked. Their preservation is unresolved until their destinations and tests are reviewed below.

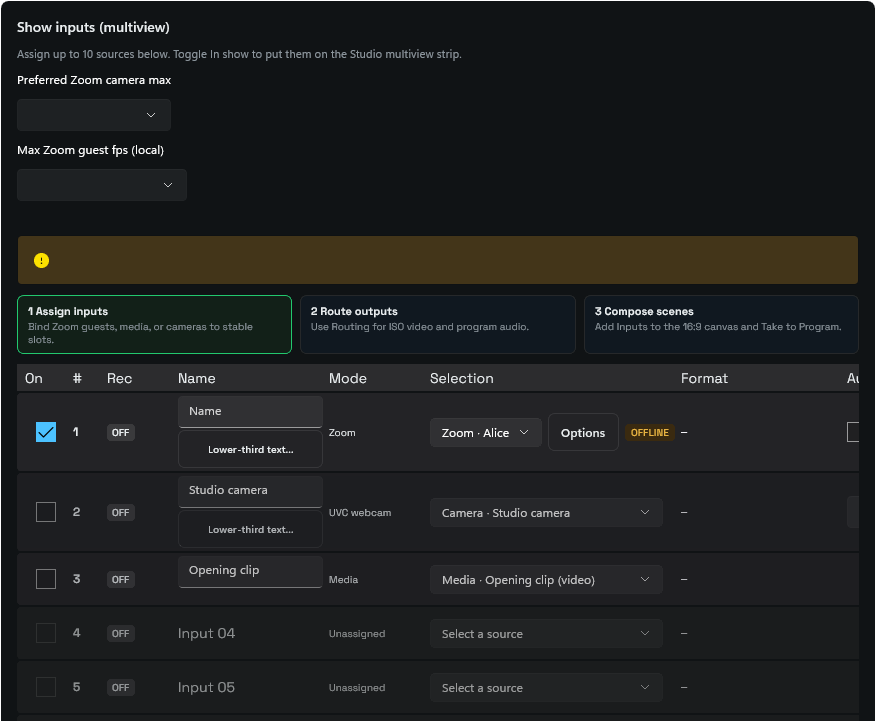

Actual October 15 development capture, not an installed/live meeting. The table extends beyond the capture; this is the problem being addressed.
Lower thirds · Existing controls, proposed discoverability
The development designer already contains visual color pickers and hex fields. Its name/title/background/accent pickers were behind collapsed sections in the gallery. The captures did not make them discoverable.
Appearance stays a draft until Apply look. Cancel restores the applied look. Compare can show the original without destroying the draft. Saved looks, independent text lines, opacity, typography, placement and source logos remain.
No color control should require a hex code. Provide a visual spectrum/picker, with hex as optional precision entry. Color and opacity remain separate where the underlying control uses separate alpha.
The sample below proposes a clearer entry point. It does not demonstrate the Windows picker or publish anything to your app.
Draft matches applied reference. Nothing is sent to CoreVideo.
Review whether the visual picker is obvious and draft versus applied is understandable. This sample covers accent color only; the same entry pattern is required for all editable colors.
Comment on this task ↓Grading / ROI · Preservation walkthrough
Curve channel labels, keyboard point selection, meaningful units, Reset and exact entry become clearer. ROI does not become a grade mask, a scene crop, or a transmitted overlay.
Grade live-edit choice and Apply/Cancel semantics stay. Curves, adjustment stack, LUT/preset behavior, full-frame restore and output consistency must not disappear behind a simpler UI.
Required to keep is a design constraint, not a claim of successful regression testing. A destination marked incomplete blocks approval of the full replacement.
| Capability / behavior | Proposed destination | Review state / proof needed |
|---|---|---|
| Ten stable numbered inputs; no silent reassignment or shifting thumbnails | Sources list + source assignment inspector | Shown in proposal; native identity/churn validation still required |
| Source categories and clear source type | Category filter, row kind and source picker | Restored in revision 2; all enabled adapter kinds must remain |
| Observed source resolution, frame rate, liveness and meters | At-a-glance rows + selected-source detail | Illustrative values only; distinguish requested from observed in app |
| Quick Multiview inclusion, independent of scene Take | Per-row MV checkbox + inspector | Restored in revision 2; route/Program invariance requires app test |
| ISO arm/record state, routing and recording readiness | Quick source status + existing Routing/record controls | Destination incomplete in proposal — must review before replacing page |
| Zoom camera max resolution and local guest FPS preference | Source/meeting quality settings, discoverable from Sources | Not mocked — must retain values and existing semantics |
| Capture setup/reconnect, paired audio, sync offset, SRT/RTMP/browser setup | Source management and existing adapter-specific controls | Not fully mocked — no adapter or control removal authorized |
| Source-bound lower-third text, blank secondary override and saved looks | Text in Sources; appearance in Overlays | Existing behavior retained; persistence/output regression tests required |
| Visual color pickers plus optional exact hex, sliders/units/reset | Shared color entry and adjustment controls | Picker entry demonstrated here; Windows/high-DPI interaction still open |
| Scene layers, Tiles members/style, transforms, crop/fit, drafts, Take, saved routes | Existing Scene Builder workspace | Reused, not replaced by Sources; verify saved/custom routes survive |
| Grade stack, curves, presets/LUTs and scopes-only drawn ROI | Existing grade workspace | Keep live-edit choice; verify scope pixels and output parity |
| Webcam-only OH framer and live loudness overlay; other outputs stay clean | Existing webcam overlay settings and native output branch | Unchanged by this proposal; verify output-specific scope and persisted settings |
| Accurate output/readiness reporting and healthy Program/Preview delivery | Existing native pipeline, measured status and recording state | No redesign may trade quality or cadence for layout; real output/meeting acceptance stays separate |
| Live audio controls, devices, processing and routing | Existing Audio workspace, essential source controls in inspector | No new Apply barrier; behavior/settings must round-trip |
