Actual compiled WinUI · Candidate 2f6802e · October 15, 2026

The approved Sources design, implemented.

The table is the default workspace. Open the inspector for a selected input, or launch its existing full grade editor directly. Your installed app has not been changed.

What these images show: Actual compiled controls captured offscreen through the API using synthetic sources. They are static images, not interactive app controls. GPU video and scope pixels are excluded by the capture API; blank picture areas do not show a media failure. Unknown format/FPS remains an em dash. Physical display, high-DPI presentation and live meeting acceptance remain open.

Scan every input

Retained rows keep source identity and previews stable. Format/FPS, MV inclusion and ISO arm remain directly available. Search, categories, saved column choices, Zoom quality and source catalog stay within the Sources workflow.

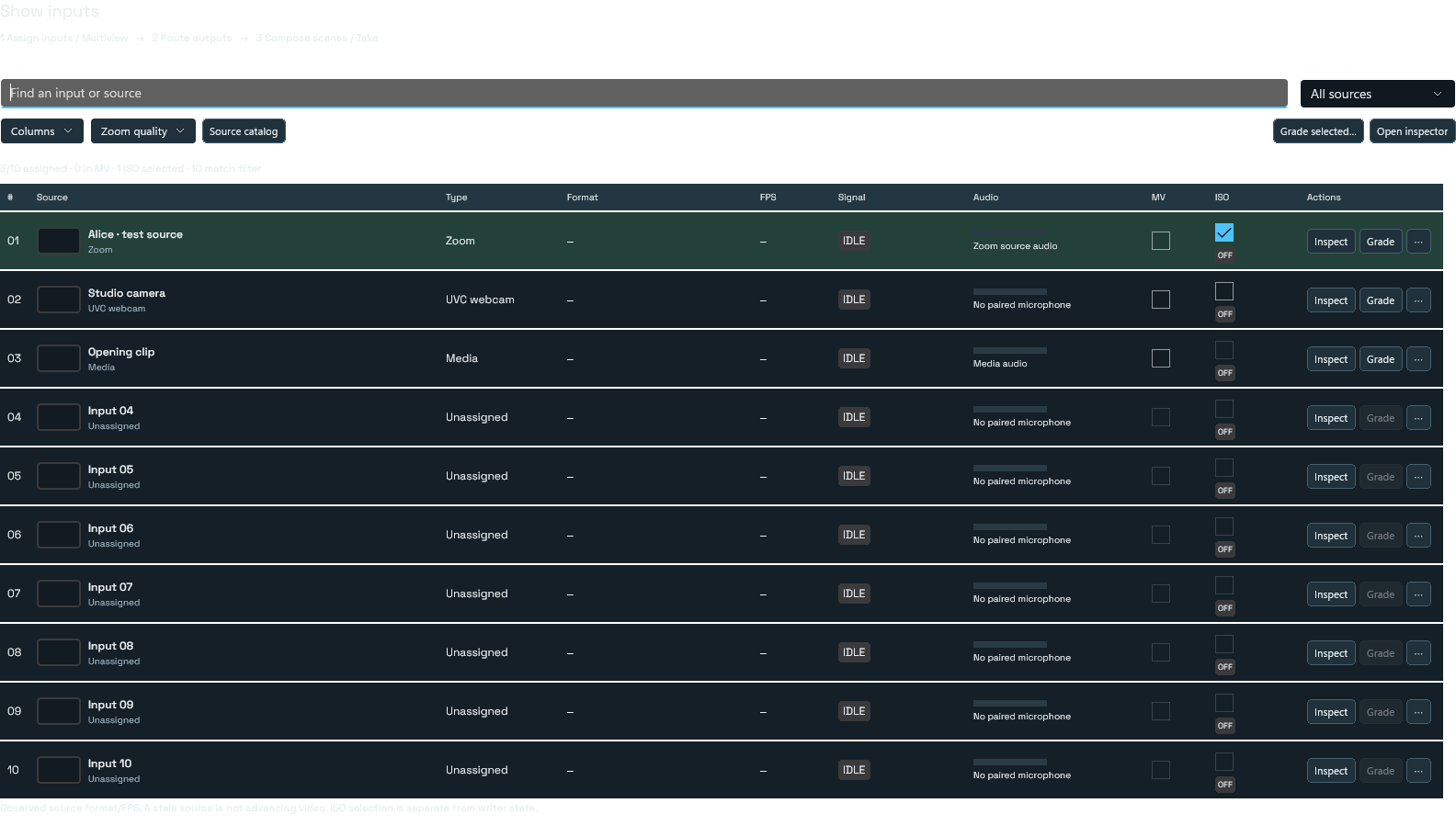

Compiled Sources table with ten retained input rows, signal columns and direct MV and ISO controls — Table overview. ISO arm is separate from writer state; filtering and column changes do not alter assignments.

Inspect the same selected input

The inspector opens beside the table on wide layouts and below it on narrower layouts. Source, Picture + Grade and Audio groups reuse the existing source assignment, lower-third, policy and pairing controls. Grade is reachable without opening the inspector.

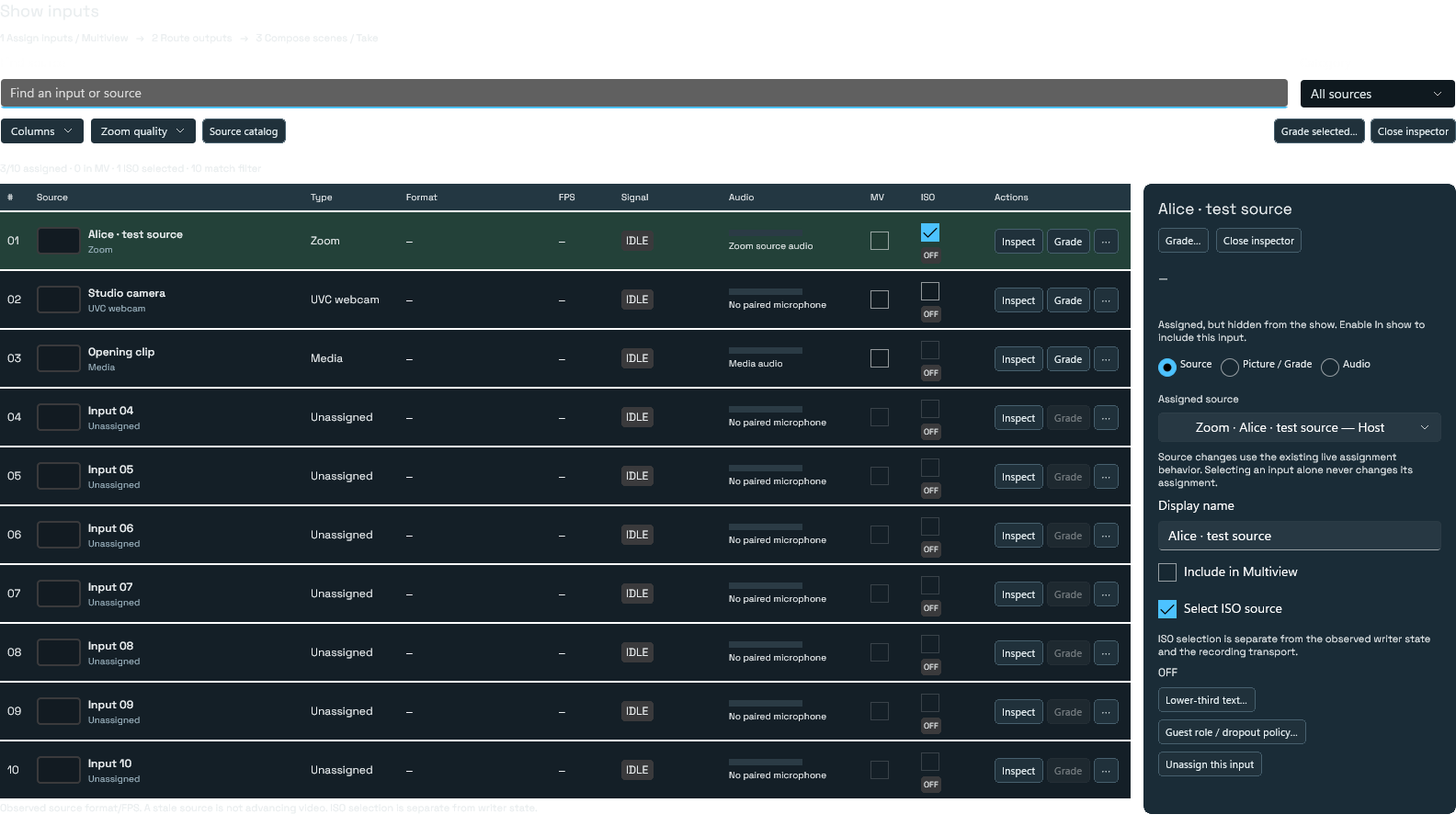

Compiled Sources table and selected-input inspector with source, picture and audio controls — Selected-input inspector. Editing remains bound to its source; stale edits are rejected after a source replacement.

Keep the full native grade editor

Both Grade entry points target the selected source’s existing editor. Curves, LUTs, scopes, drawn ROI, comparison, presets, undo and acknowledged Apply are retained.

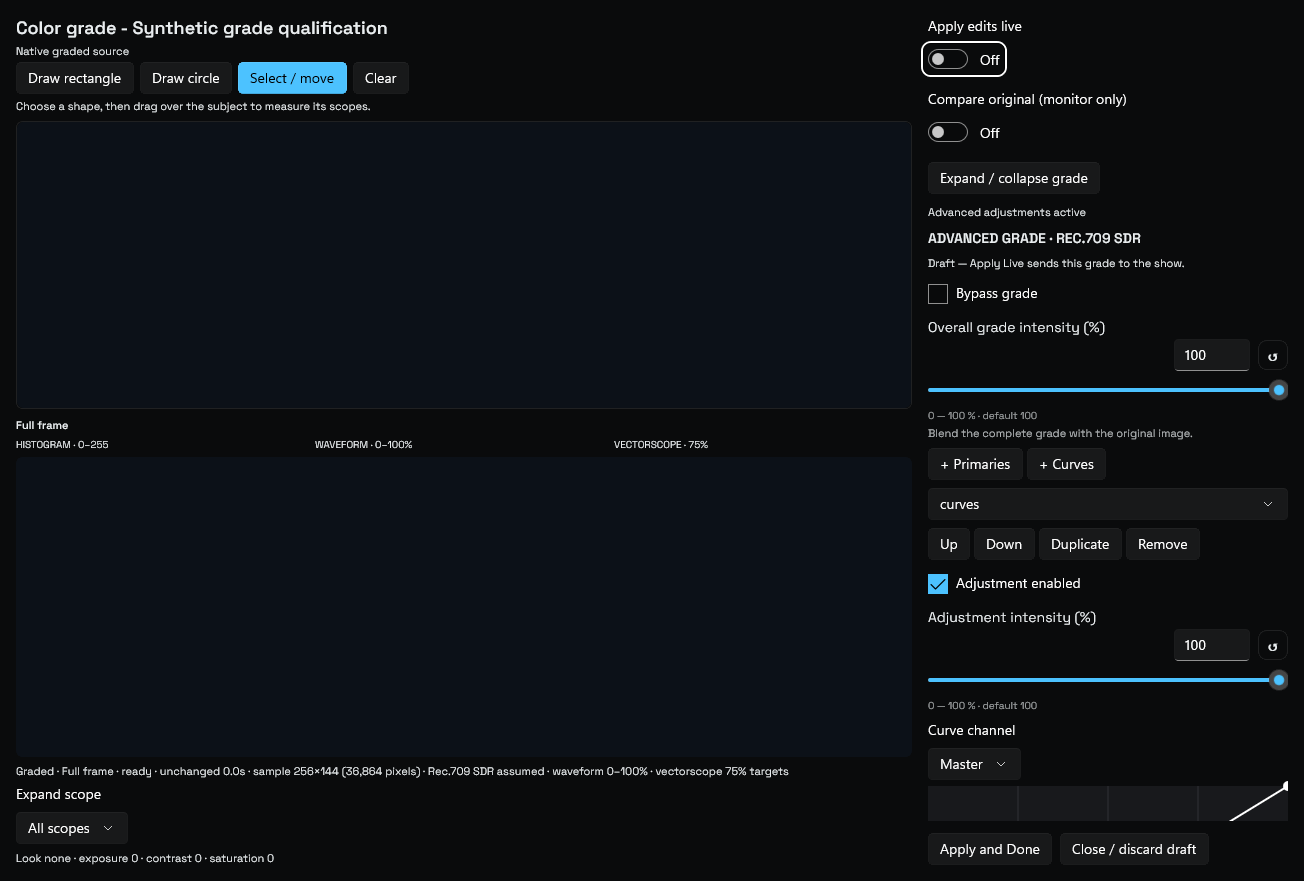

Existing compiled advanced grading editor layout connected to source grading — Native grade editor capture. GPU preview and scope pixels are not included in this layout image.

Validation: 192 focused managed tests, 30 compiled UI checks and 12 native-backed grading checks passed. These cover source identity, selection, resize/filter invariance, stale editing guards and grading behavior. They do not establish zero-miss output or live meeting acceptance.

Review this implementation

Compare the screenshots with the approved mockup, then use its existing private feedback form. Mention “native table,” “native inspector” or “native grade” so the note points to the implementation.

Leave private feedback →

Implementation PR #914 · Uninstalled review candidate; no app release or webcam registration change.
